Full Automatic Stretch Wrapper With Rotating Platform

The system offers low consumption of stretch film. The pallet can wrapped with the load which makes the load much more stable without the need of any additional equipment. Thanks to its detailed settings from the screen, rotation speed, tension, wrapping cycle are adjustable on any location of the load. Also corner tension relief setting is avaliable preventing the load being damaged. Roping feature is added during standart wrapping which enables the load more stable. Its robust structure ensures a system that can be used for many years.
System Specifications
Speed(Max.) 30 pallets/hour
Load Size (Max - Min)(mm) 1050 x 1400 x 2000 / 600 x 800 x 600
Load Height (Max.) 2000 mm
Pallet Weight(Max.) 1500 kg
Pre – Stretch Ratio(Min.- Max.) %100 - %300
Automatic Sealer Optional
Control VIPA Speed 7 PLC with Ethernet Communication
HMI Siemens KTP 700 Touchscreen
Program Siemens Tia Portal
Power Requirements 3P+N+PE 380 V, 50/60 Hz.
Air Pressure 6 Bar
“Our right for all sorts of modification for providing improvement in the dimensions and technical properties are reserved”

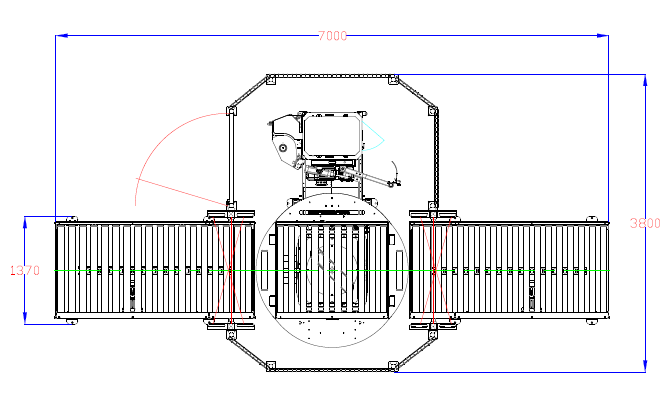

System Layout
