Products Multipalletizing System

Multipalletizing System

WHY INPAL 150M
The palletizing method of 150M is the same as the single layer type palletizer, but it palletizes morethan one line.
It can place different products onto different pallets at the same time. This creates a cost-effective and space-efficient solution for businesses with lower capacity lines.
Unlike other multi-systems, it accumulates each product as layer on different trays which reduces time losses and makes a system with higher capacity and efficiency.
The system can palletize two or more lines with different capacities.
In addition, Inpal 150M offers all the advantages of Inpal 100 and 150
System Specifications
Palletizing Speed (max.) 5 layers/min
Pallet Size (mm) 800 x 1200 / 1000 x 1200
Package Dimension (max.)     1200 x 500 x 400 mm
Layer Weight (max.) 400 kg
Pallet Weight (max.) 2000 kg
Installed Power (kW) 13
Power Consumption (kW)     1
Air Consumption (l/min)     20/80 (with sheet dispenser)
“Our right for all sorts of modification for providing improvement in the dimensions and technical properties are reserved”

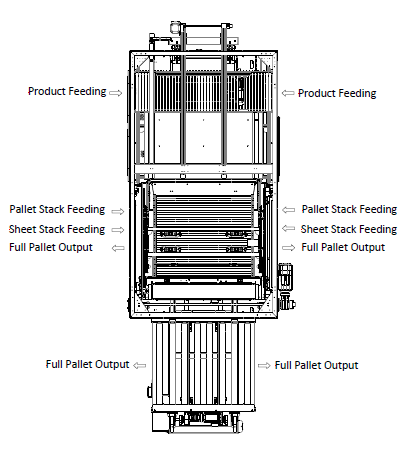

System Layout
