Piling Palletizing System

WHY PILING SYSTEM
Piling type palletizer offers a good solution for products where quantity and layer weight of the product is less than usual.
The principle of palletizing is different in this system. The first layer that is formed is placed at the top of the pallet, and the following layers are located below this layer in order.
It offers a simplier and therefore more cost-effective solution than other palletizing systems. It has a very small footprint and high capacity.
System Specifications
Palletizing Speed (max.) 5 layers/min
Pallet Size (mm) 800 x 1200 / 1000 x 1200
Package Dimension (max.)     1200 x 1000 x 500 mm
Layer Weight (max.)     400 kg
Pallet Weight (max.) 2000 kg
Installed Power (kW) 9
Power Consumption (kW)     1,5
Air Consumption (l/min)     50
“Our right for all sorts of modification for providing improvement in the dimensions and technical properties are reserved”

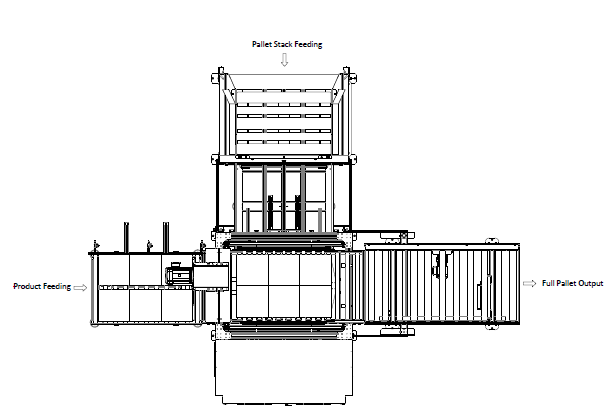

System Layout
